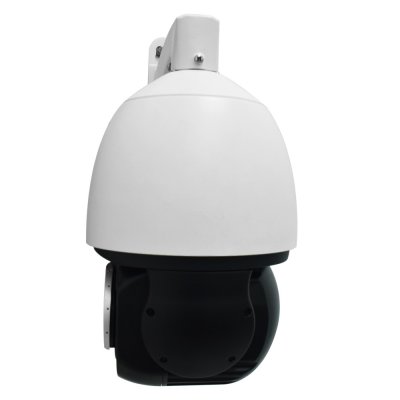

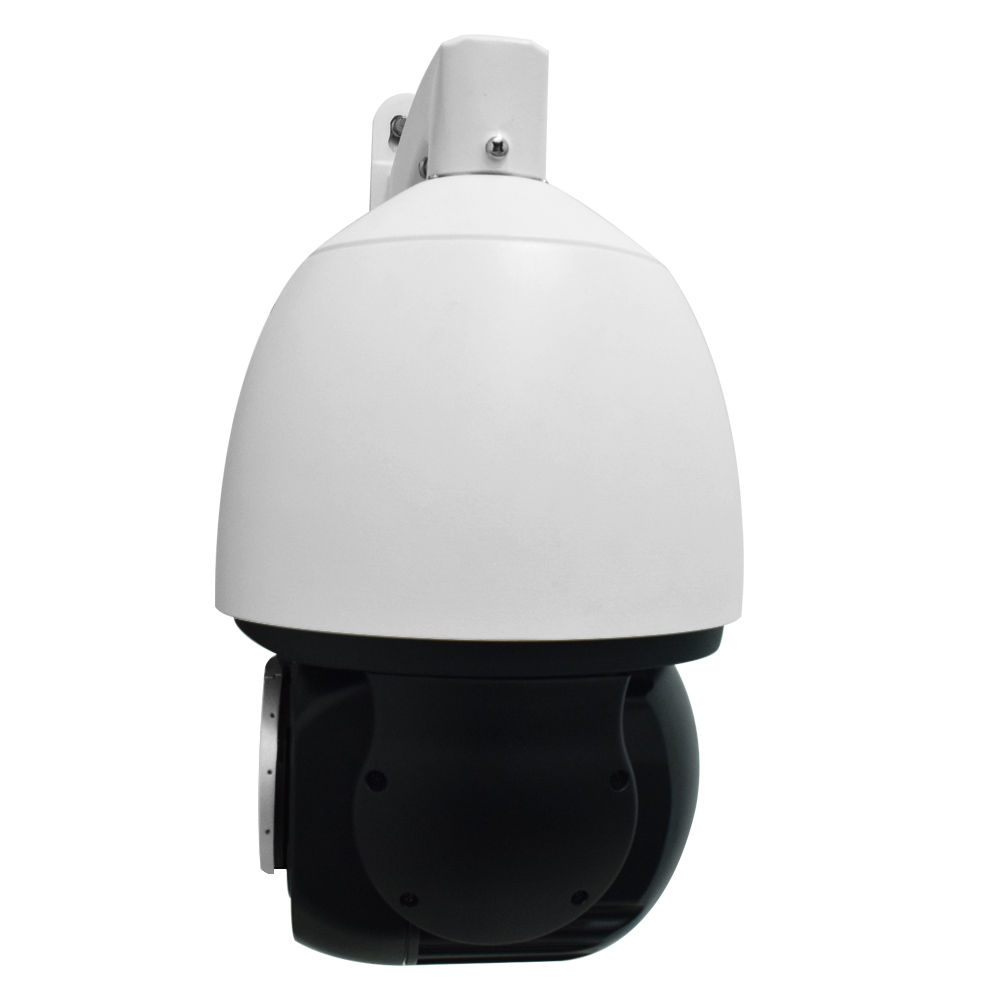

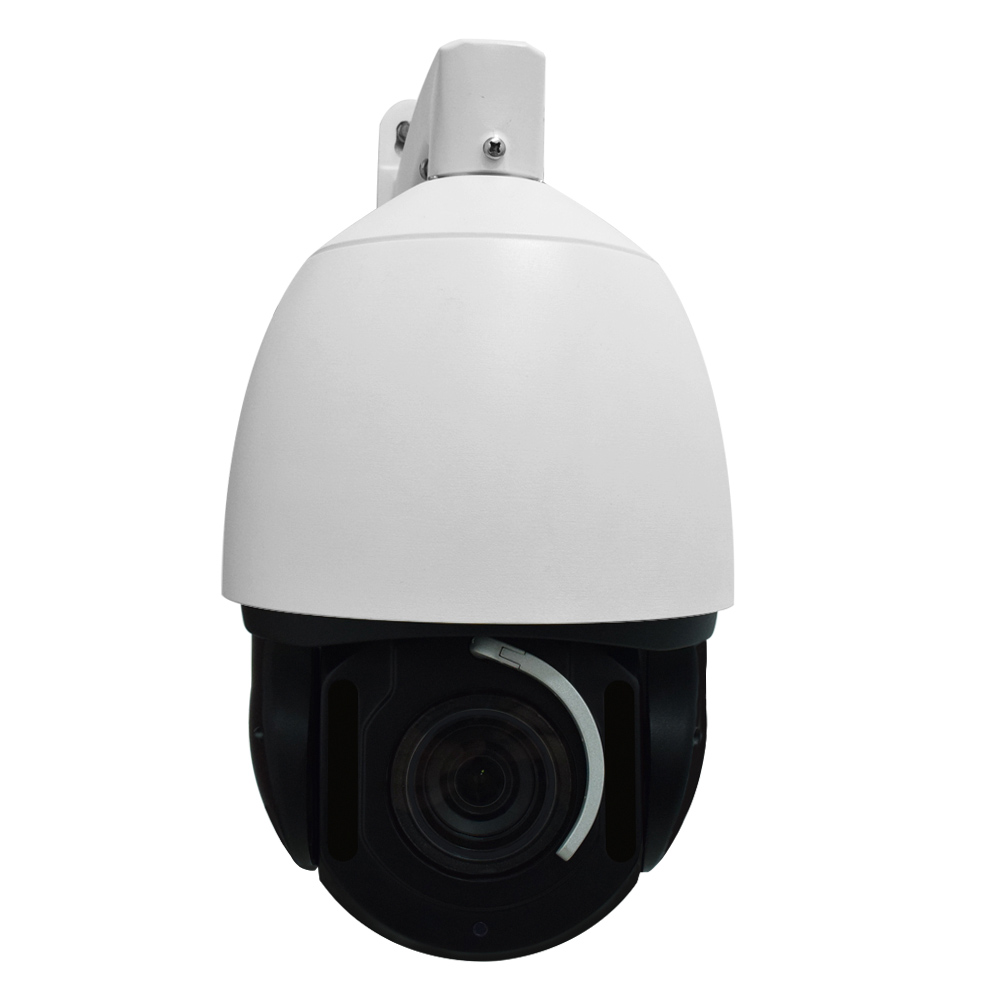

  • ZY28L-3 4X 1080P Starlight IP Bullet PTZ H.265

  • Analog Series: IP PTZ Camera

  • Release Date: 2018-11-22

  • Clicks:

  • Consultation


Model:ZY28L-3       4X 1080P Starlight IP Bullet PTZ   H.265


Pan & Tilt
Manual speed Pan0.1°80°/s
IR irradiation distance 30M-50M
Rotation Pan rotation range 0~ 270°, tilt -560°  Tilt Rotation range -5~60°
Preset  128 preset, title can be edited
Idlle run tour/preset/pattern/scan can be set
Power up run tour/preset/pattern/scan can be set
sensor 1/2.8"Progressive Scan CMOS
Effective Pixels 1920(H)x1080(V)
Image Output Main Stream:1920*1080@20fps,1280*720@30fps;
Sub Stream: 704*576@30fps
Video Compression H.265++/H.265+/H.265/H.264,support dual stream,AVI;0.1M~8Mpbs variable;1~30fps variable
OPTICS Optical x4, f =2.8mm ~ 12 mm
Auto Focus Auto / Manual
Min Illumination Color :  0.0001 lux@F1.2 , BW : 0.0001lux@F1.2
Shutter Time 1/50(1/60)s to 1/10,000s
Noise reduction Support 2D/3D
Wide dynamic Support digital
Motion Detection Support
Ethernet 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
Security Measures User authentication (ID and PW)
Onvif Onvif 2.4 Ver.
Other function Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG captureunited remote client monitoring sofawareMYEYE;perfect SDK
Mobile monitoring Support multiple mobile monitoringiOSAndroid
Audio interface Support (optional), not support any custom
POE Support POE power supply (optional), not support any custom
The basic parameters
Power consumption 9W/15W(IR_LED ON)
Power supply DC 12V 1.5A
Temperature  -10℃~+50
Installation Wall installation
Net weight 910g
Size Product size 153mm×93mm×130mmL×W×H), Packing size 255×205×250mm
Protection Level: IP66 standard (outdoor dome)
TVS lightning protection,  voltage transient protection
