IP PTZ Camera

Current location:Home- > Product > IP PTZ Camera >

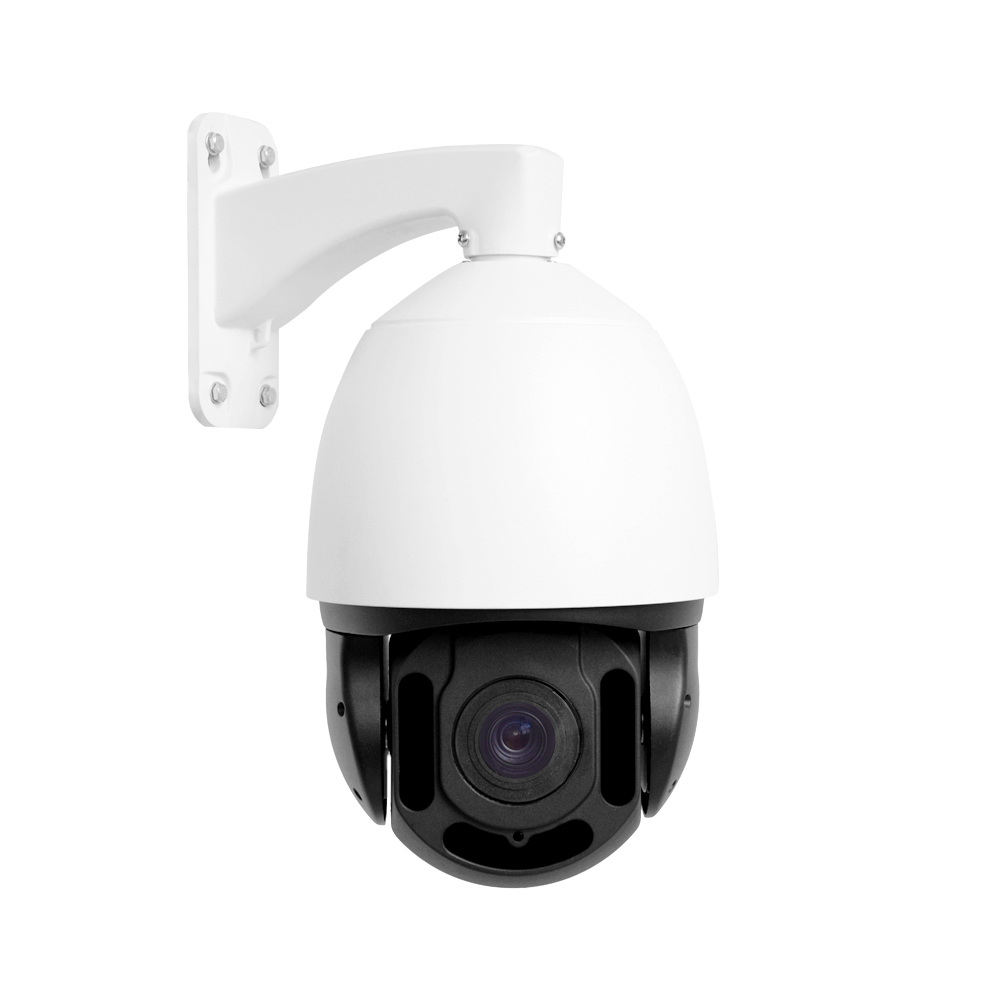

  • ZP68L-G 33X 1080P Starlight IP PTZ H.265

  • Analog Series: IP PTZ Camera

  • Release Date: 2018-10-26

  • Clicks:

  • Consultation


Model:ZP68L-G         33X 1080P Starlight IP PTZ     H.265

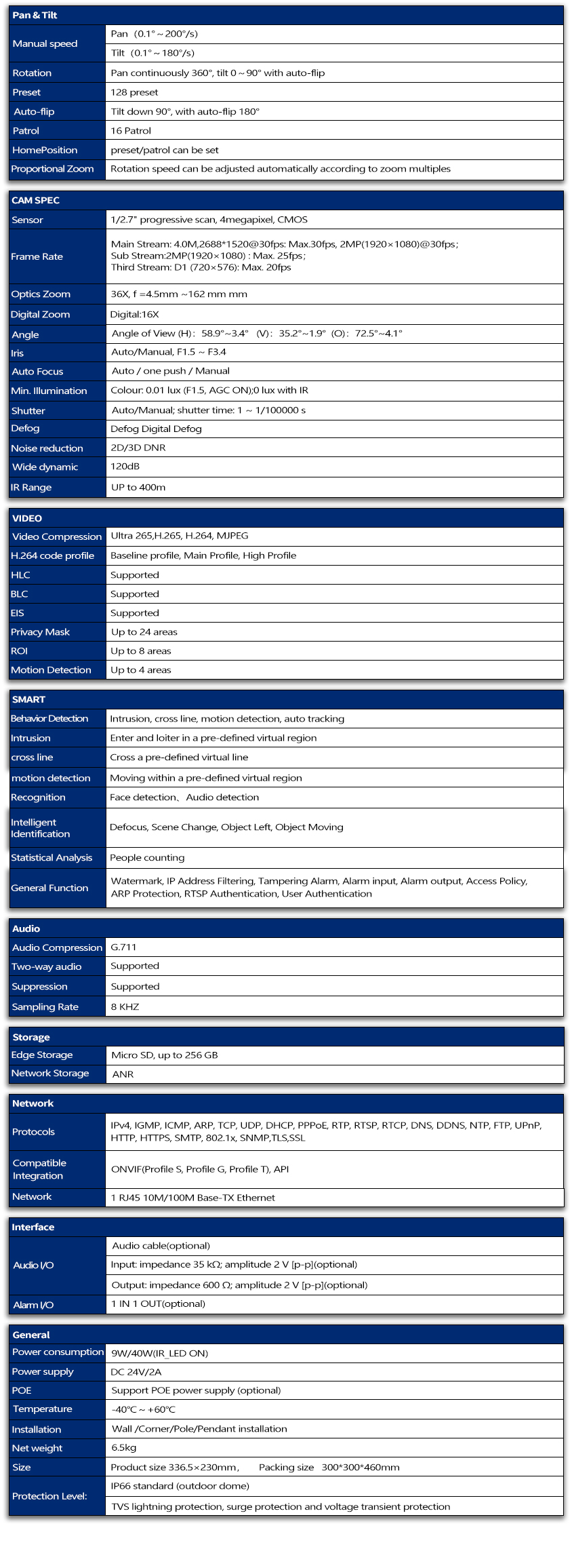

Pan & Tilt
Manual speed Pan0.1°200°/s
Rotation Pan continuously 360°, tilt 090° with auto-flip
Preset  128 preset, title can be edited
Auto-flip Tilt down 90°, with auto-flip 180°
Scan 355°programmable, 4 scan
Pattern 4 patterns, and each record time is not less than 180s
Tour 4 tour, and speed & park time of presets can be set.
Idlle run tour/preset/pattern/scan can be set
Power up run tour/preset/pattern/scan can be set
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
sensor 1/2.8"Progressive Scan CMOS
Effective Pixels 1920(H)x1080(V)
Image Output Main Stream:1920*1080@30fps,1280*720@30fps;
Sub Stream: 704*576@30fps
Video Compression H.265++/H.265+/H.265/H.264,support dual stream,AVI;0.1M~8Mpbs variable;1~30fps variable
OPTICS Optical 33X ,(F=4.6mm-152mm)
Angle Appr. 66.1°W)~2.46°T
Auto Focus Auto / Semi-automatic / Manual
Min. Illumination Color : 0.0001 lux , BW : 0.0001lux
Shutter Time 1/50(1/60)s to 1/10,000s
Noise reduction Support 2D/3D
Wide dynamic Support digital
Motion Detection Support
IR irradiation distance 150m
IR irradiation angle Adjustable by zoom
ICR Manual/Auto
Ethernet 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
Security Measures User authentication (ID and PW)
Onvif Onvif 2.4 Ver.
Other function Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG captureunited remote client monitoring sofawareMYEYE;perfect SDK
Mobile monitoring Support multiple mobile monitoringiOSAndroid
Audio interface Support (optional), not support any custom
POE Support POE power supply (optional), not support any custom
Power consumption 9W/40W(IR_LED ON)
Power supply DC 24V/2A
Temperature  -40℃~+60

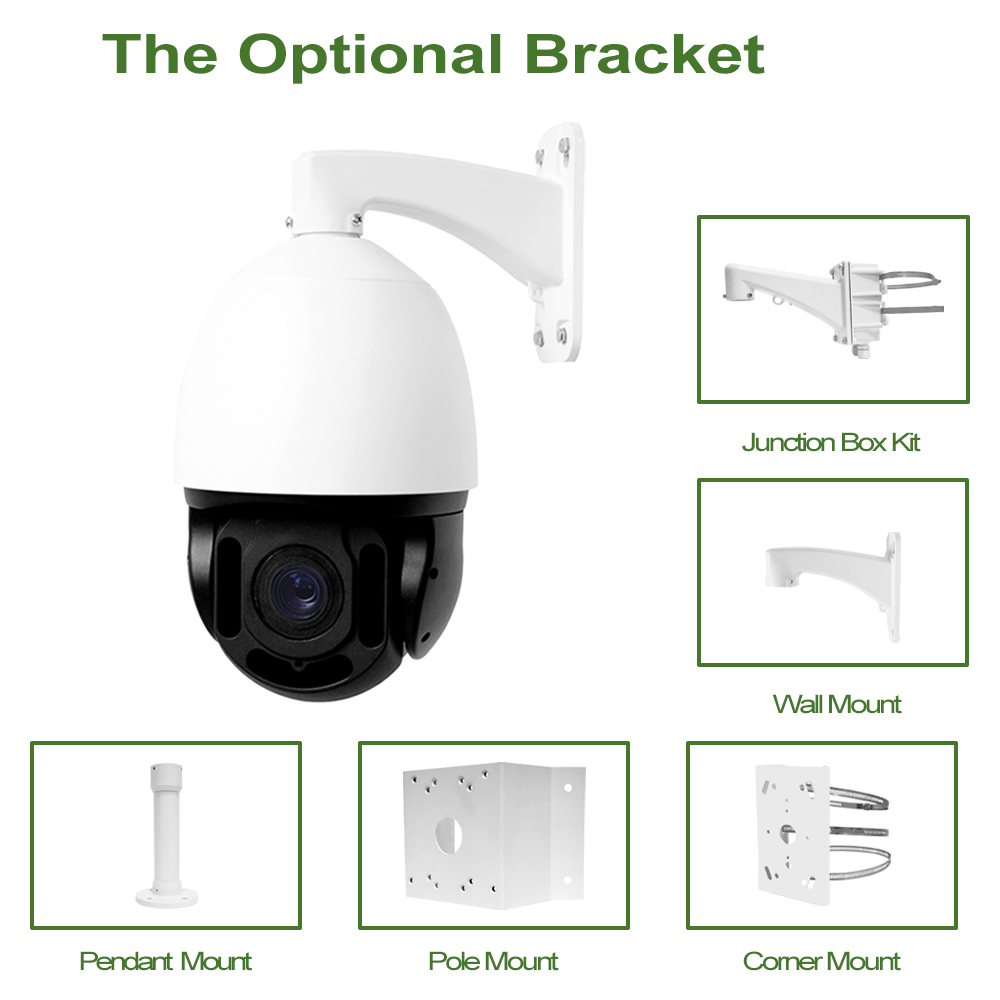

Installation Wall /Corner/Pole/Pendant installation
Net weight 6.5kg
Size Product size 336.5×230mm     Packing size   300*300*460mm
Protection Level: IP66 standard (outdoor dome)
TVS lightning protection, surge protection and voltage transient protection
