IP PTZ Camera

Current location:Home- > Product > IP PTZ Camera >

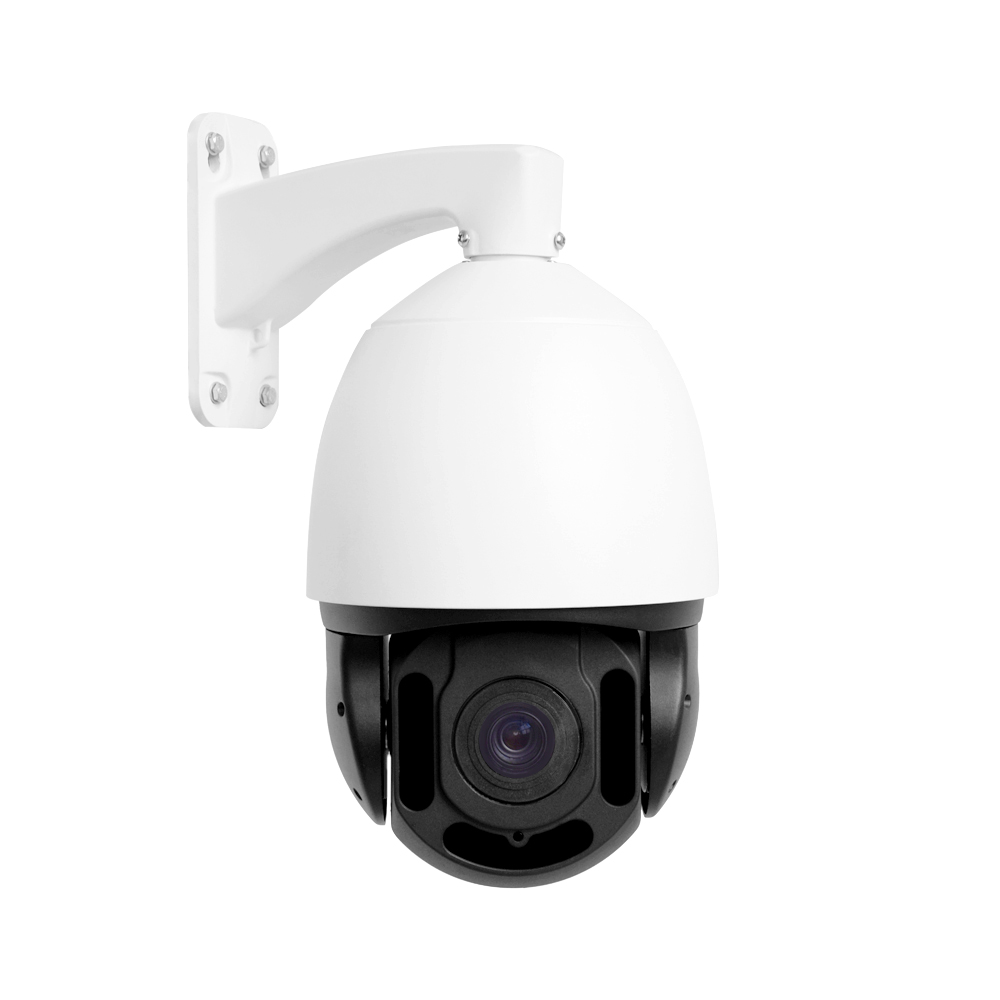

  • ZP68L-I 18X 5MP IP PTZ CAMERA H.265

  • Analog Series: IP PTZ Camera

  • Release Date: 2018-10-26

  • Clicks:

  • Consultation

Details

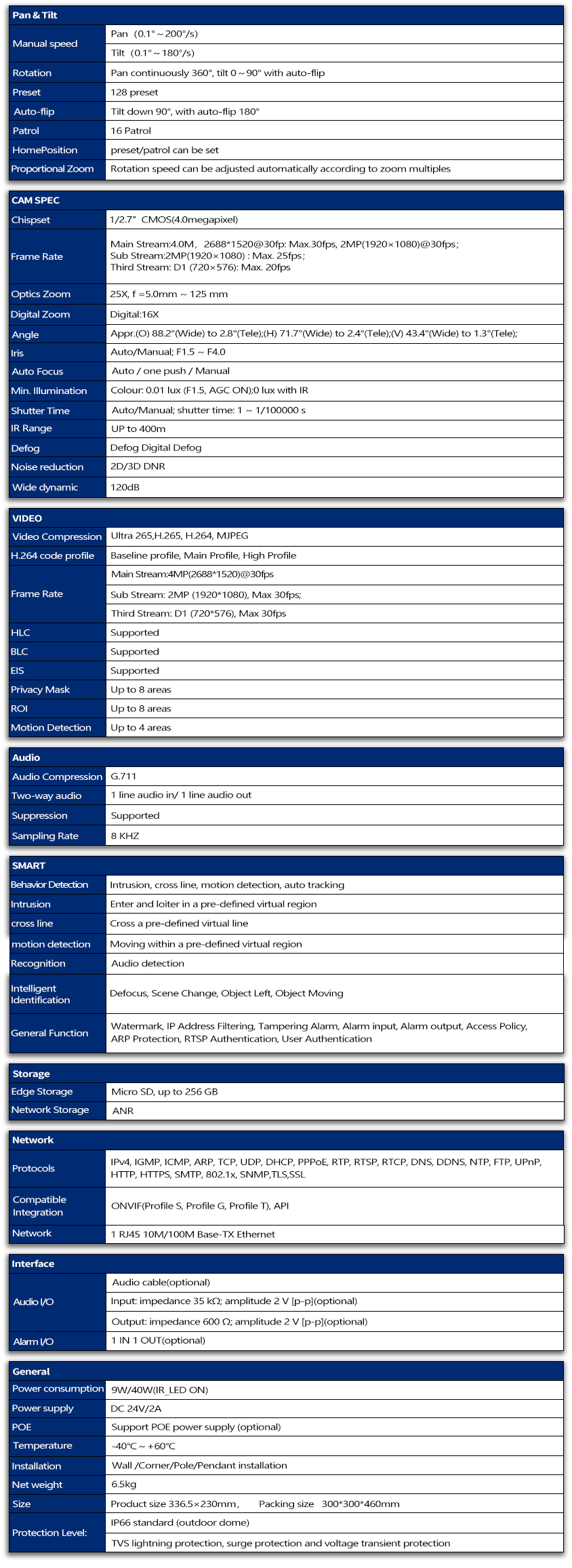

Model:ZP68L-I               18X 5MP IP PTZ CAMERA     H.265





Pan & Tilt
Manual speed Pan0.1°200°/s
Tilt0.1°180°/s
Rotation Pan continuously 360°, tilt 090° with auto-flip
Preset  128 preset, title can be edited
Auto-flip Tilt down 90°, with auto-flip 180°
Scan 355°programmable, 4 scan
Pattern 4 patterns, and each record time is not less than 180s
Tour 4 tour, and speed & park time of presets can be set.
Idlle run tour/preset/pattern/scan can be set
Power up run tour/preset/pattern/scan can be set
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples

CAM SPEC
sensor 1/2.7"Progressive Scan CMOS
Effective Pixels 5MP 2592*1944@15fps
Image Output Main Stream:5MP 2592*1944@15fps; 4MP 2560*1440@30fps; 3MP 2048*1536@30fps
Sub Stream: 704*576@30fps
Video Compression H.265++/H.265+/H.265/H.264,support dual stream,AVI;0.1M~8Mpbs variable;1~30fps variable
OPTICS Optical x18, f =4.7mm ~ 84.6 mm
Angle Appr. 64.1°(Wide) to 3.6°(Tele)
Auto Focus Auto / Semi-automatic / Manual
Min. Illumination Color : 0.1 lux@F1.2 , BW : 0.01 lux @F1.2
Shutter Time 1/50(1/60)s to 1/10,000s
Noise reduction Support 2D/3D
Wide dynamic Support digital
Motion Detection Support

IR
IR irradiation distance 150m
IR irradiation angle Adjustable by zoom
ICR Manual/Auto

Network
Ethernet 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
Security Measures User authentication (ID and PW)
Onvif Onvif 2.4 Ver.
Other function Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG captureunited remote client monitoring sofawareMYEYE;perfect SDK
Mobile monitoring Support multiple mobile monitoringiOSAndroid
Audio interface Support (optional), not support any custom
POE Support POE power supply (optional), not support any custom

The basic parameters
Power consumption 9W/40W(IR_LED ON)
Power supply DC 24V/2A
Temperature  -40℃~+60
Installation Wall /Corner/Pole/Pendant installation
Net weight 6.5kg

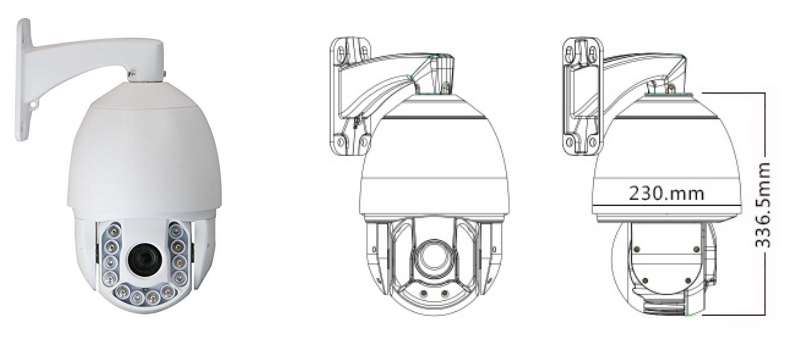

Size Product size 336.5×230mm      Packing size 300*300*460mm
Protection Level: IP66 standard (outdoor dome)
TVS lightning protection, surge protection and voltage transient protection
