Current location：Home- > Product > IP PTZ Camera >
Analog Series： IP PTZ Camera
Release Date： 2018-10-26
Clicks：

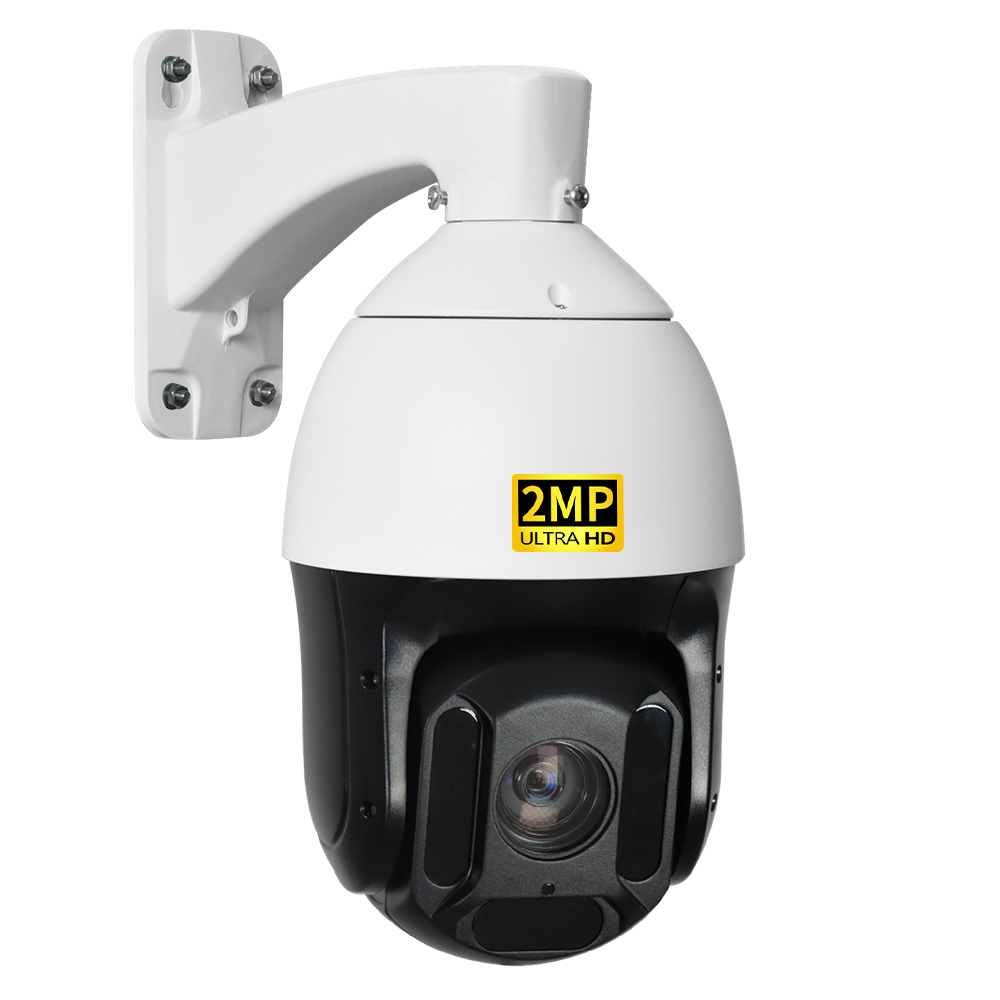

Model：ZP64ML-G 18X 1080P Starlight IP Middle Speed PTZ H.265
| Pan & Tilt | |
| Manual speed | Pan（0.1°～80°/s） |
| Tilt（0.1°～80°/s） | |
| Rotation | Pan continuously 360°, tilt 0～90° with auto-flip |
| Preset | 128 preset, title can be edited |
| Auto-flip | Tilt down 90°, with auto-flip 180° |
| Scan | 355°programmable, 4 scan |
| Pattern | 4 patterns, and each record time is not less than 180s |
| Tour | 4 tour, and speed & park time of presets can be set. |
| Idlle run | tour/preset/pattern/scan can be set |
| Power up run | tour/preset/pattern/scan can be set |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| CAM SPEC | |
| sensor | 1/2.8"Progressive Scan CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| Image Output | Main Stream:1920*1080@30fps,1280*720@30fps; |
| Sub Stream: 704*576@30fps | |
| Video Compression | H.265++/H.265+/H.265/H.264,support dual stream,AVI;0.1M~8Mpbs variable;1~30fps variable |
| OPTICS | Optical x18, f =4.7mm ~ 84.6 mm |
| Angle | Appr. 64.1°(Wide) to 3.6°(Tele) |
| Auto Focus | Auto / Semi-automatic / Manual |
| Min. Illumination | Color : 0.0001 lux , BW : 0.0001lux |
| Shutter Time | 1/50(1/60)s to 1/10,000s |
| Noise reduction | Support 2D/3D |
| Wide dynamic | Support digital |
| Motion Detection | Support |
| IR | |
| IR irradiation distance | 120m |
| IR irradiation angle | Adjustable by zoom |
| ICR | Manual/Auto |
| Network | |
| Ethernet | 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc |
| Security Measures | User authentication (ID and PW) |
| Onvif | Onvif 2.4 Ver. |
| Other function | Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK |
| Mobile monitoring | Support multiple mobile monitoring（iOS，Android） |
| Audio interface | Support (optional), not support any custom |
| POE | Support POE power supply (optional), not support any custom |
| Power consumption | 9W/35W(IR_LED ON) |
| Power supply | DC 24V/2A |
| Temperature | -40℃～+60℃ |
| Installation | Wall /Corner/Pole/Pendant installation |
| Net weight | 5kg |
| Size | Product size 350×229mm， Packing size 235*235*460mm |
| Protection Level: | IP66 standard (outdoor dome) |
| TVS lightning protection, surge protection and voltage transient protection | |
