Current location：Home- > Product > IP PTZ Camera >
Analog Series： IP PTZ Camera
Release Date： 2018-10-18
Clicks：

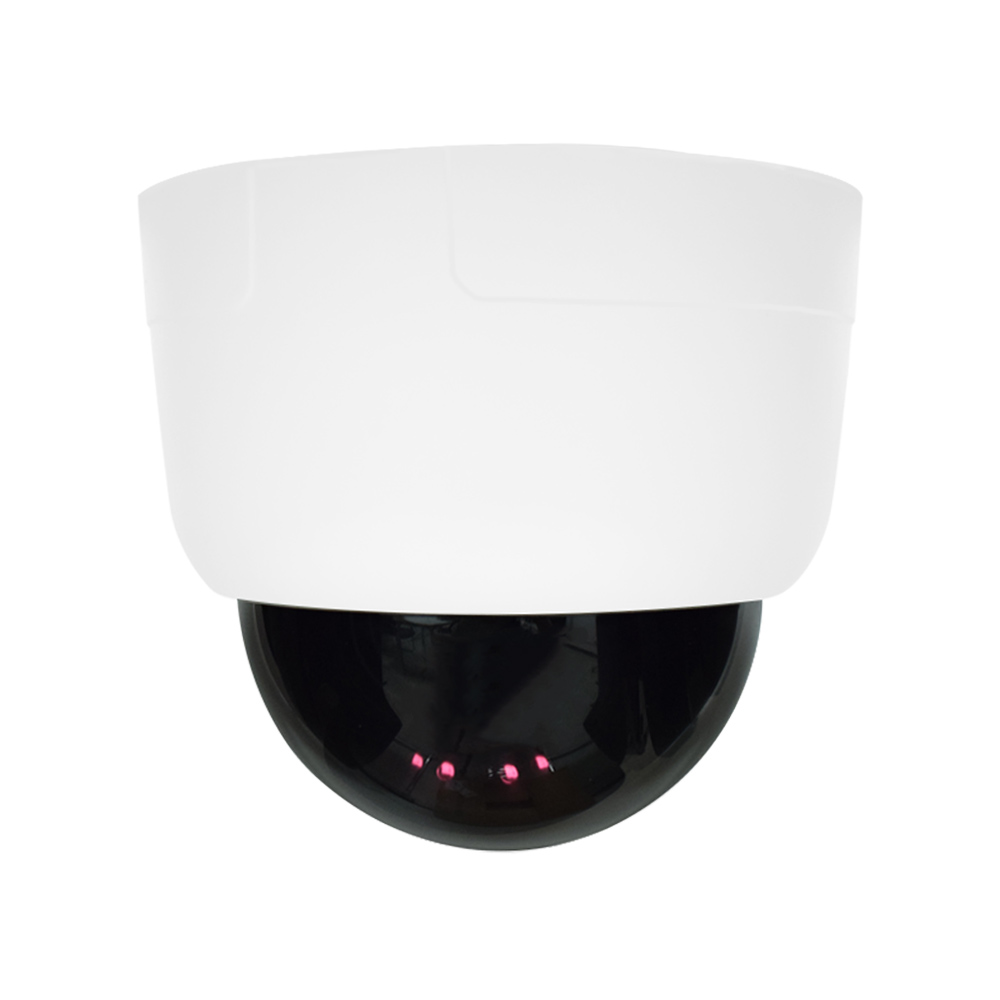

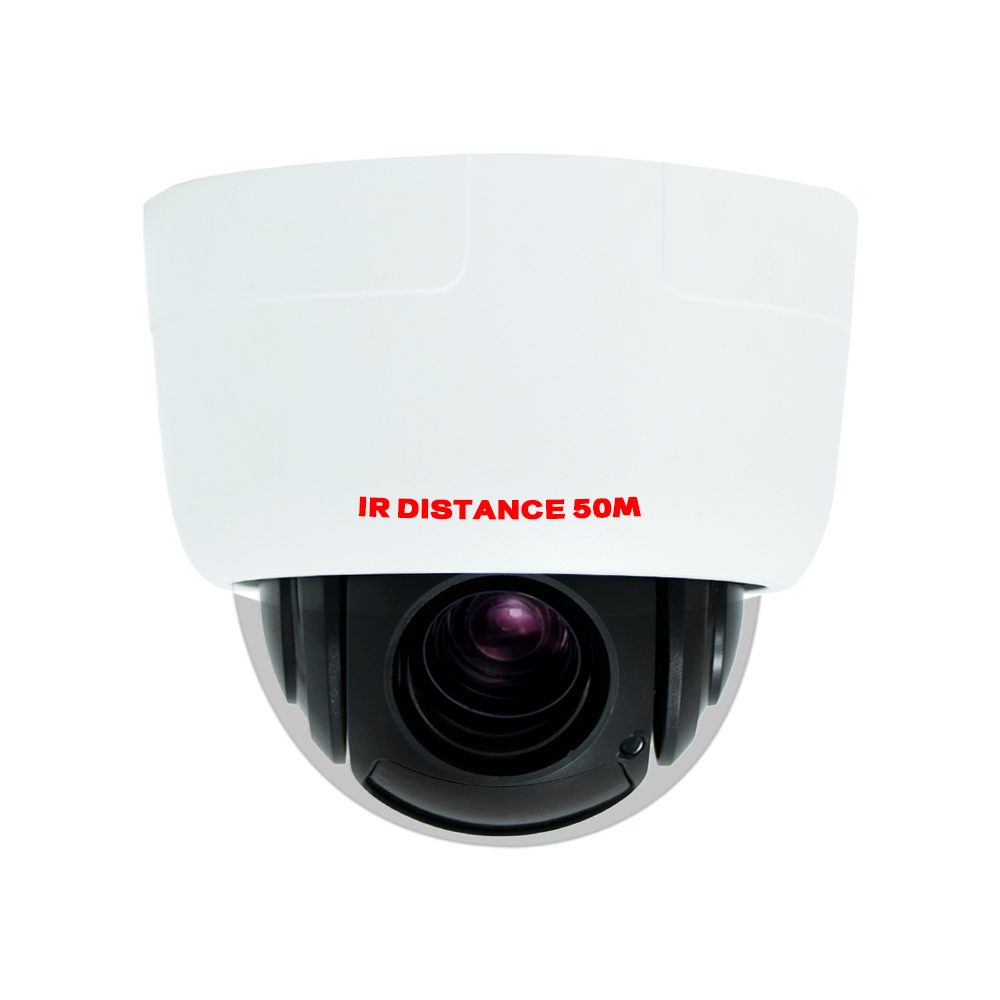

Model：ZP42L-L 10X 4MP Mini IP PTZ

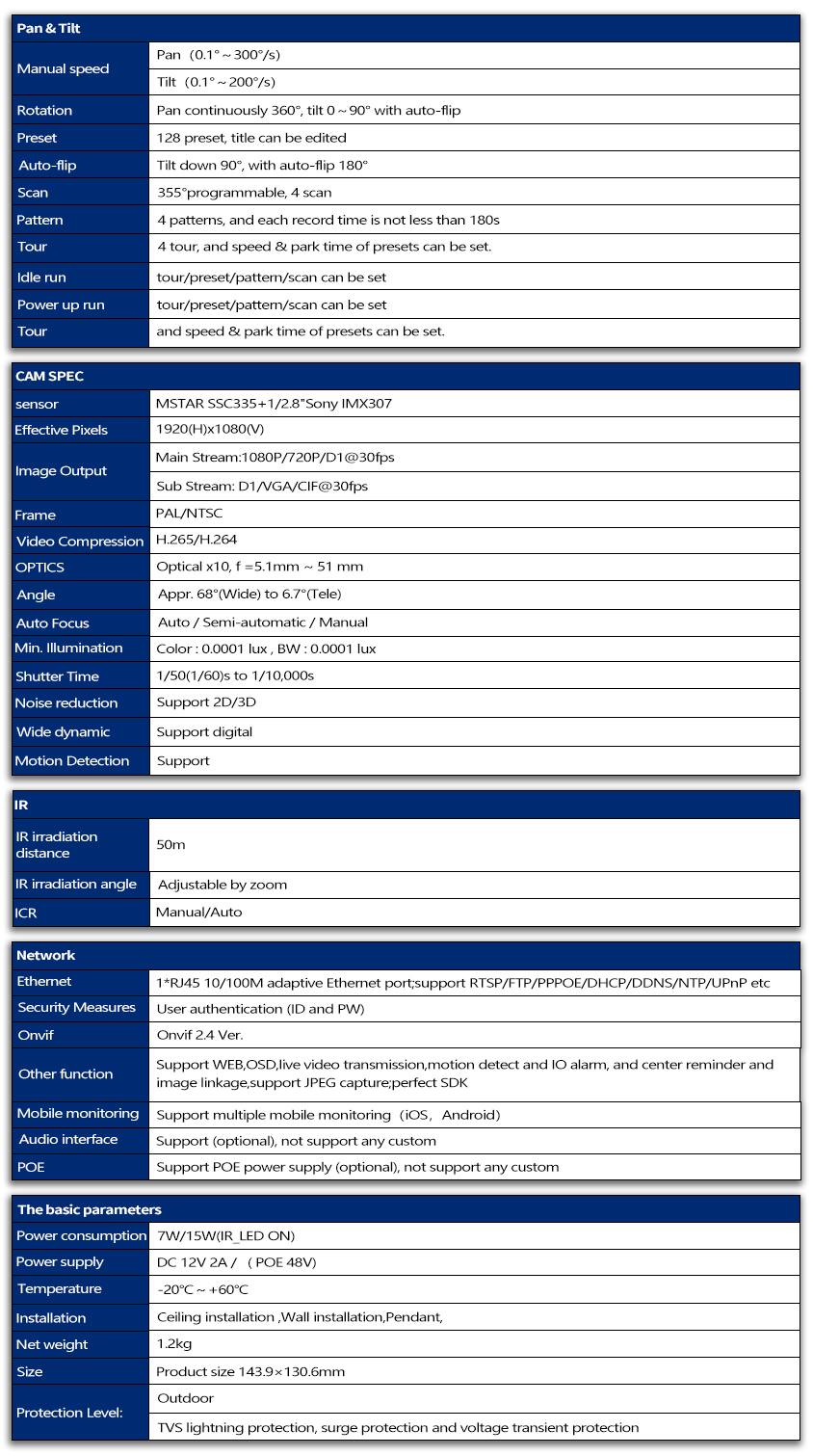

| Pan & Tilt | |
| Manual speed | Pan（0.1°～300°/s） |
| Tilt（0.1°～200°/s） | |
| Rotation | Pan continuously 360°, tilt 0～90° with auto-flip |
| Preset | 128 preset, title can be edited |
| Auto-flip | Tilt down 90°, with auto-flip 180° |
| Scan | 355°programmable, 4 scan |
| Pattern | 4 patterns, and each record time is not less than 180s |
| Tour | 4 tour, and speed & park time of presets can be set. |
| Idle run | tour/preset/pattern/scan can be set |
| Power up run | tour/preset/pattern/scan can be set |
| Tour | and speed & park time of presets can be set. |
| CAM SPEC | |
| sensor | 1/2.7"Progressive Scan CMOS |
| Effective Pixels | 5.0MP 2592*1944@15fps |
| Image Output | Main Stream:5MP 2592*1944@15fps; 4MP 2560*1440@25fps; 3MP 2048*1536@25fps |
| Sub Stream: 704*576@15fps | |
| Video Compression | H.265++/H.265+/H.265/H.264,support dual stream,AVI;0.1M~8Mpbs variable;1~30fps variable |
| OPTICS | Optical x10, f =5.1mm ~ 51 mm |
| Angle | Appr. 68°(Wide) to 6.7°(Tele) |
| Auto Focus | Auto / Semi-automatic / Manual |
| Min Illumination | Color : 0.1 lux@F1.2 , BW : 0.01lux@F1.2 |
| Shutter Time | 1/50(1/60)s to 1/10,000s |
| Noise reduction | Support 2D/3D |
| Wide dynamic | Support digital |
| Motion Detection | Support |
| Network | |
| Ethernet | 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc |
| Security Measures | User authentication (ID and PW) |
| Onvif | Onvif 2.4 Ver. |
| Other function | Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK |
| Mobile monitoring | Support multiple mobile monitoring（iOS，Android） |
| Audio interface | Support (optional), not support any custom |
| POE | Support POE power supply (optional), not support any custom |
| The basic parameters | |
| Power consumption | 9W |
| Power supply | DC 12V 1.5A / ( POE 24V~48V) |
| Temperature | -20℃～+60℃ |
| Installation | Ceiling installation ,Pendant |
| Net weight | 1.2kg |

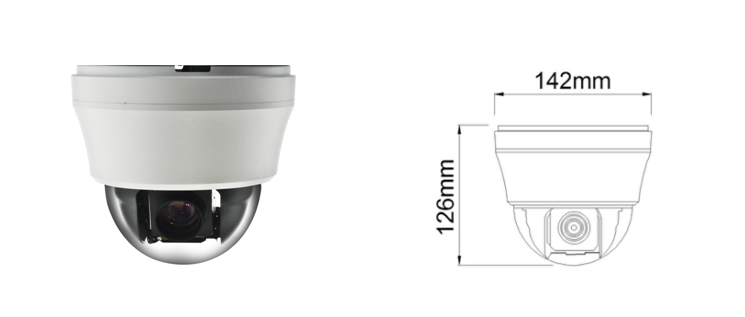

| Size | Product size 126×142mm ， Packing size Packing size 255×205×250mm |
| Protection Level: | TVS lightning protection, voltage transient protection |
