Analog HD Camera

Current location:Home- > Product > Analog HD Camera >

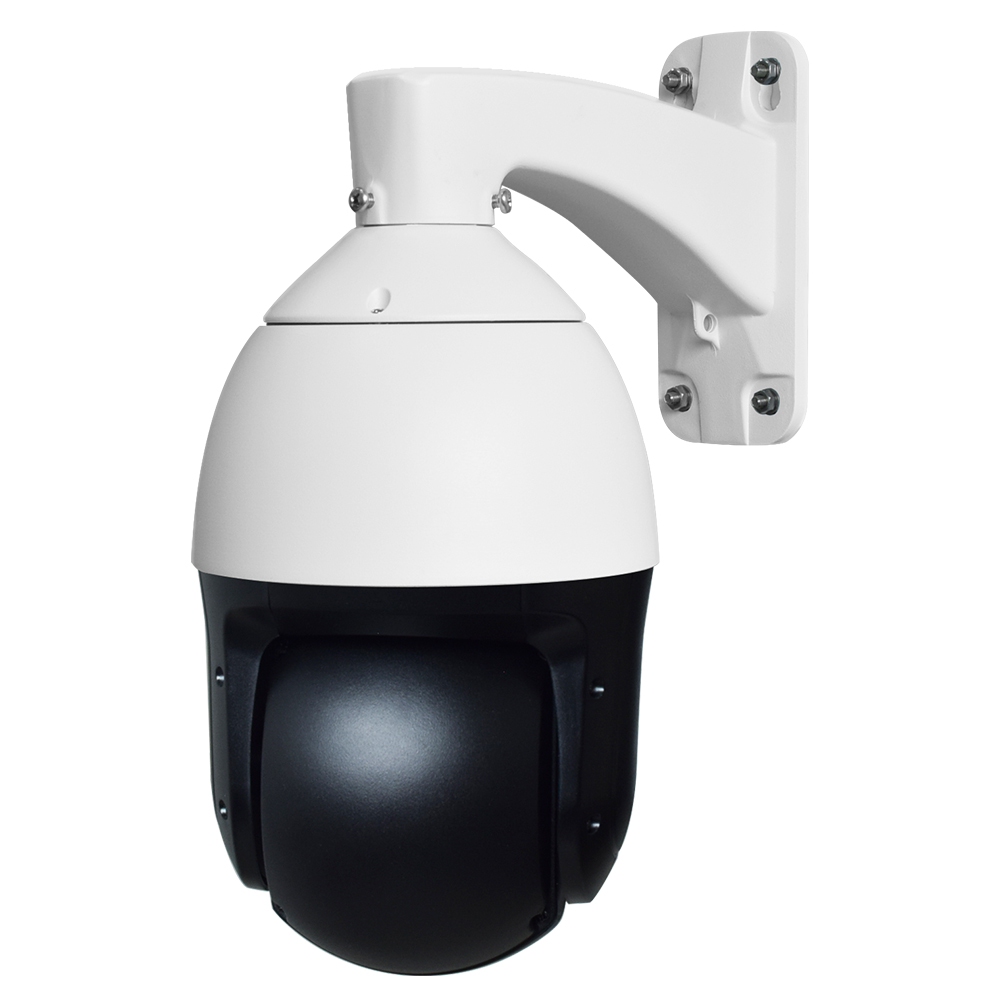

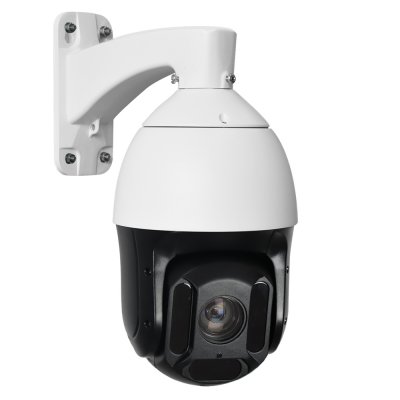

  • ZP68S-3 18X 5MP PTZ camera 4 in 1

  • Analog Series: Analog HD Camera

  • Release Date: 2018-11-23

  • Clicks:

  • Consultation

Details

Model:ZP68S-3         18X 5MP PTZ camera    4 in 1



Pan & Tilt
Manual speed Pan0.1°200°/s
Tilt0.1°180°/s
Rotation Pan continuously 360°, tilt 090° with auto-flip
Preset  128 preset, title can be edited
Auto-flip Tilt down 90°, with auto-flip 180°
Scan 355°programmable, 4 scan
Pattern 4 patterns, and each record time is not less than 180s
Tour 4 tour, and speed & park time of presets can be set.
Idle run tour/preset/pattern/scan can be set
Power up run tour/preset/pattern/scan can be set

CAM SPEC
sensor 1/2.7''Progressive Scan CMOS
Effective Pixels 2600*1944 (5M 4:3)                2568*1440 (4M 16:9)
Signal System PAL/NTSC
OPTICS Optical x18, f = 5.35-93.6mm
Angle Appr. 55.2°(Wide) to 3.2°(Tele)
Auto Focus Auto / Semi-automatic / Manual
Min. Illumination Color : 0.1 lux , BW : 0.01lux
AES AUTO/ 1/50 1/60 -1/50,000sec
S/N (Y signal) ≥50dB
White Balance Auto
ICR Manual/Auto
DNR Auto / Off / Low / Middle / High
HLC Off / On
Max Gain Auto
IRIS Auto
FLIP Vertical , Horizontal ,Vertical-Horizontal,OFF Selectable

IR
IR irradiation distance 150m
IR irradiation angle Adjustable by zoom

General
Romote controlling RS485,UTC
Baud rate (RS485) 240048009600/19200 bps
ID range 1-254(software add.)
Output AHD/TVI 5M,AHD/TVI/CVI 4M ,CVBS 960H
Power consumption 9W/40W(IR_LED ON)
Power supply DC 24V 2A
Temperature  -40℃~+60
Installation Wall /Corner/Pole/Pendant installation
Net weight 6.5kg
Size Product size 336.5×230mm  Packing size 300×300×460mm
Protection Level: IP66 standard (outdoor dome)
TVS lightning protection, surge protection and voltage transient protection
