Current location：Home- > Product > Analog HD Camera >
Analog Series： Analog HD Camera
Release Date： 2018-11-22
Clicks：

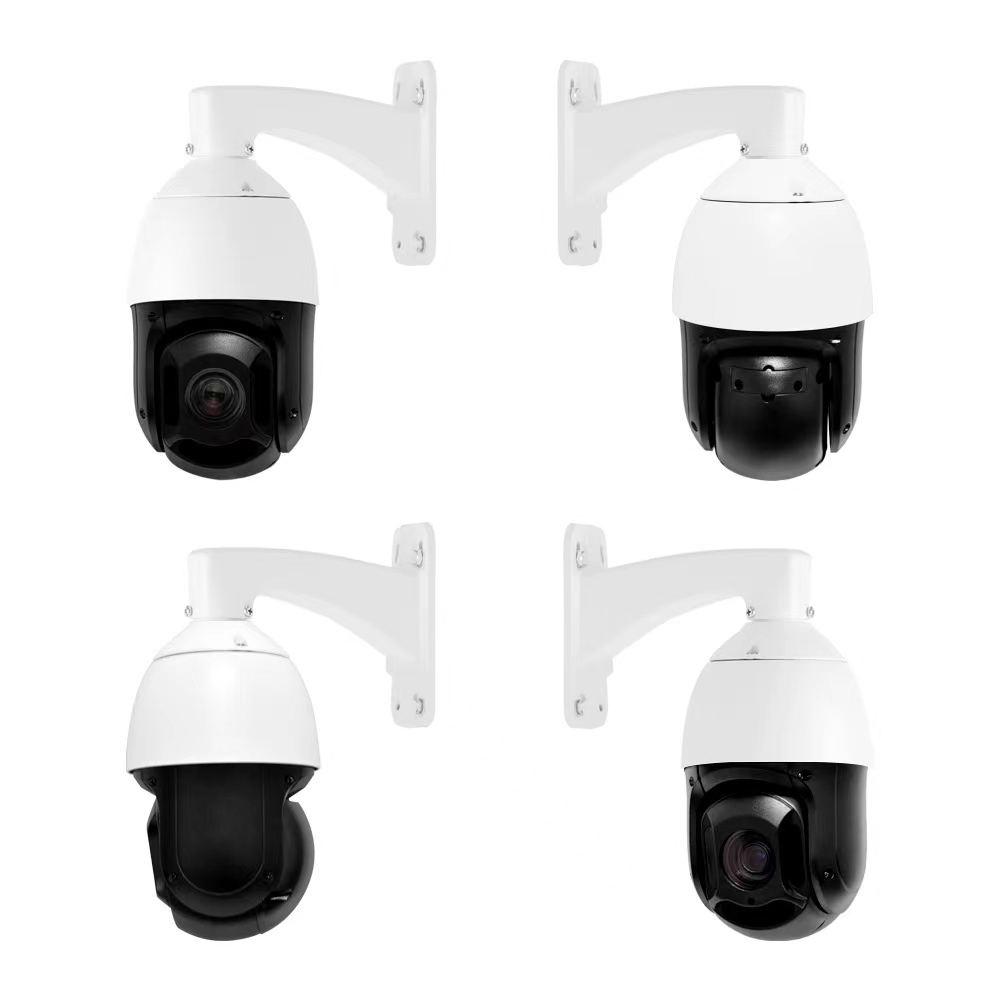

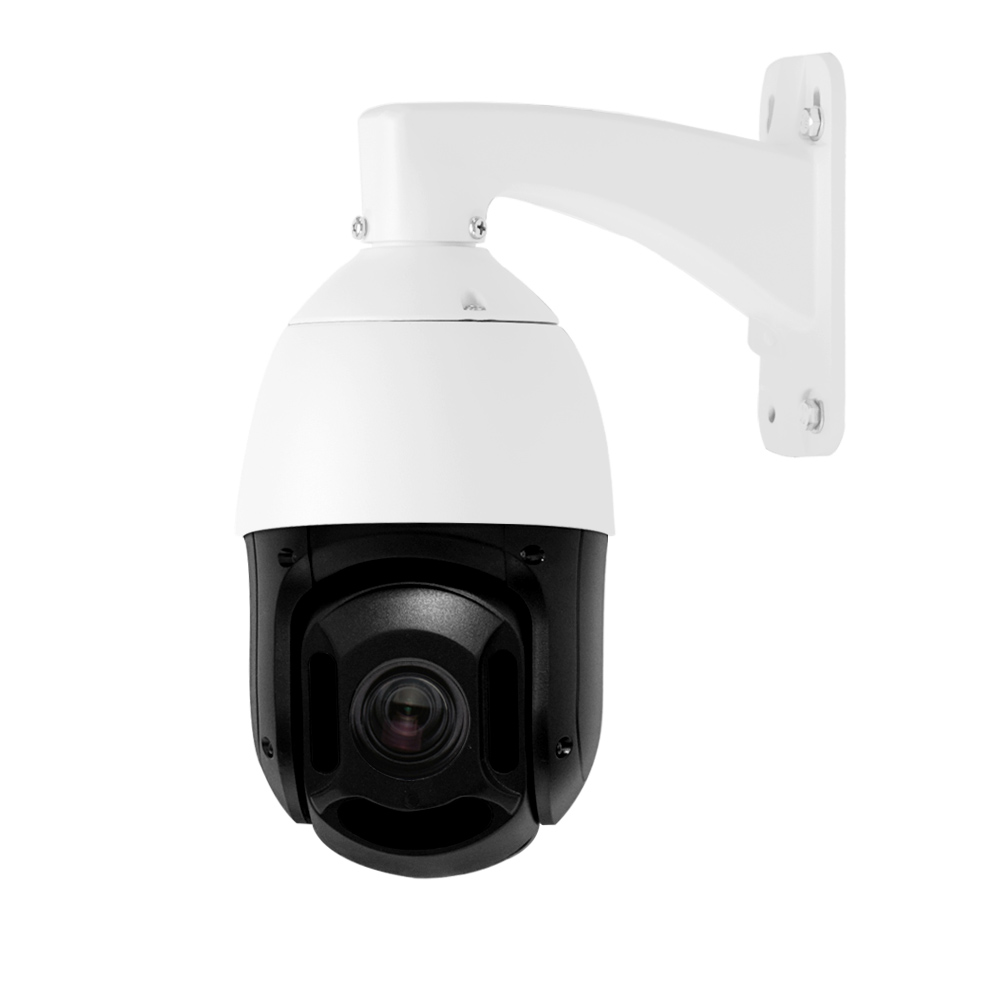

Model：ZY28S-C 3X 1080P PTZ CAMERA 4in1
| Pan & Tilt | |
| Manual speed | Pan（0.1°～80°/s） |
| Tilt（0.1°～80°/s） | |
| IR irradiation distance | 30M-50M |
| Rotation | Pan rotation range 0~ 270°, tilt -5～60° Tilt Rotation range -5~60° |
| Scan | 270°programmable, 1 scan |
| Tour | 1 tour, and speed& park time of presets can be set. |
| Preset | 128 preset, title can be edited |
| Idle run | tour/preset/pattern/scan can be set |
| Power up run | tour/preset/pattern/scan can be set |
| CAM SPEC | |
| sensor | 1/2.9 ''Progressive Scan CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| Signal System | PAL/NTSC |
| OPTICS | Optical x3, f = 3.5-10.5mm |
| Min. Illumination | Color : 0.5 lux , BW : 0.1lux |
| S/N (Y signal) | 52dB |
| White Balance | Auto |
| ICR | Manual/Auto |
| DNR | Auto / Off / Low / Middle / High |
| HLC | Off / On |
| Max Gain | Auto |
| IRIS | Auto |
| FLIP | Vertical , Horizontal ,Vertical-Horizontal,OFF Selectable |
| General | |
| Romote controlling | RS485,UTC |
| Baud rate (RS485) | 2400／4800／9600/19200 bps |
| ID range | 1-254(software add.) |
| Output | AHD&TVI&CVI /1080P CVBS/960H |
| Power consumption | 9W/15W(IR_LED ON) |
| Power supply | DC 12V 1.5A |
| Temperature | -20℃～+50℃ |
| Installation | Wall installation |
| Net weight | 910g |
| Size | Product size 153mm×93mm×130mm（L×W×H）， Packing size 255×160×130mm |
| Protection Level: | IP66 standard (outdoor） |
| TVS lightning protection, voltage transient protection | |
